Features:
* Hollow heat sink design increase more airflow for better heat dissipation.
* LED and heat sink are parallel, no dark area, no shadow.
* CREE 3030, 130lm/w.
* LED junction temperature less than 85℃.
* Meanwell HBG driver.
* Waterproof IP65 design, suitable to damp & wet location.
* Four dimensions. Lighter weight and smaller volume can help customer save freight cost.
* Hooking Hanging installation.
* LM79/LM80/IES reports available.
* 3/5 years warranty.
Specifications:
| Watt | 200W |
| Lumens | 26000LM |
| LED Chips |
SMD LED |
|
Efficacy (IES) |
130LM/W |
|
Input Voltage |
AC100-277V, 50-60Hz |
|
Color Temperature |
2700~6500K |
|
CRI |
>80 |
|
Power Factor |
>0.9 |
|
Beam Angle |
60°, 90°, 120° |
|
Lumen Maintenance |
L 70>50,000 hrs |
|
Mounting Options |
Bracket & hooking hang |
|
Material |
Aluminum alloy |
|

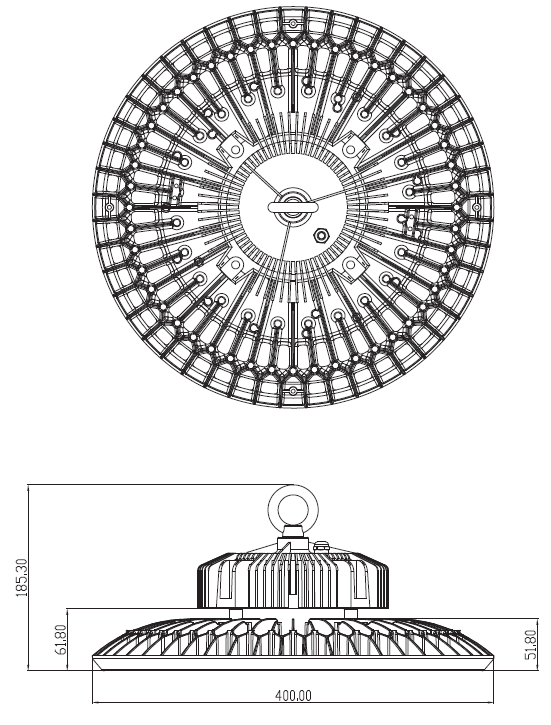

Dimension |
Φ400*H185.3mm |
|
IP Grade |
IP65 |
Beam Angle with 60°, 90°, 120°:
Two installations:
Packing data:
Applications:
LED UFO high bay fixtures are ideal for Warehouses, Manufacturing Facilities Gymnasi-ums, Aviation Hangars, Convention Centers, Big Box Retail Stores, Cold Storage Facilities.
