SS-SLH2216120001

2019-05-26 16:14:39 times browse classify:HR Series

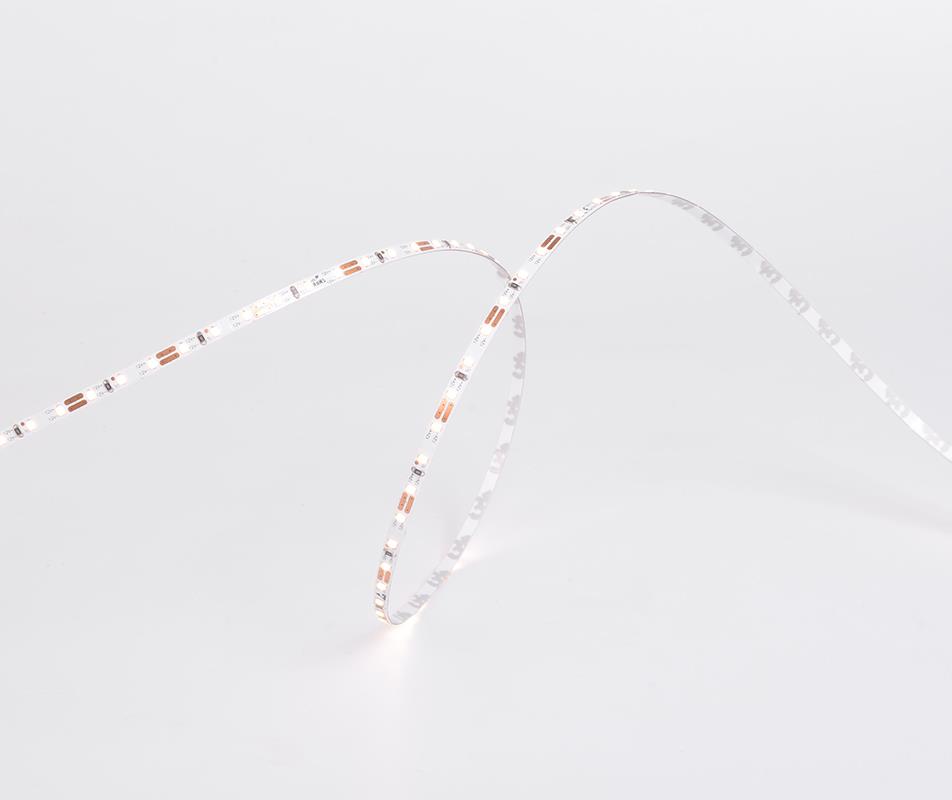

These flexible LED strips contain 120pcs San'an 2216 LEDs per single meter are designed for

long-term professional lighting applications. They are a perfect suit for linear decorative cove

lighting, curved applications, edge lighting or furniture illumination.In this LED strip LEDs are

based on a thick copper Printed circuit board (PCB) . A special thermal conductive adhesive

tape on the back side guarantees perfect heat transfer to the mounting surface. All of these

features give the strip extra long lifetime and stable performance.Atop of the PCB these LED

strips are fitted with the highest quality San'an LEDs, with a wide range of Color rendering

index (CRI) and Color temperature (CCT) to choose from. San'an LEDs guarantees highest

quality lighting and super-high efficacy. This LED strip is available with 3 Step MacAdam or

Single Bin LEDs.
Specification

LED 2216 SMD LED (7-9 LM/LED)
LED Quantity 120 LEDs/m
Lumen (LM/M) 700-800
Voltage 24V DC
Power Consumption 9.6W/m
PCB Width 4 mm
RA CRI 90
Color Cold White        /
  Pure White        6500K
  Natural White    4000K
  Warm White      2700K / 3000K
  Red / Green / Blue / Yellow
Beam Angle 120°
Driver Model Constant Voltage
IP Rate IP20
Working Temperature -25°C ~ +60°C
Store Temperature -25°C ~ +70°C

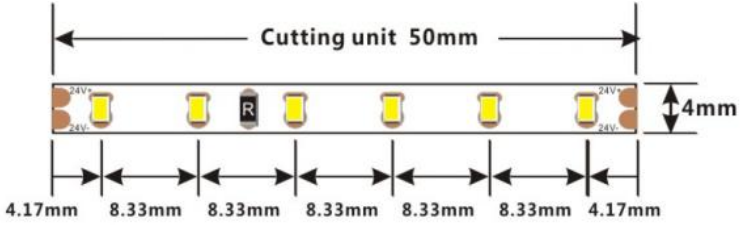

Drawing:
