SS-SLS2110700001

2019-05-26 18:38:49 times browse classify:STD Series

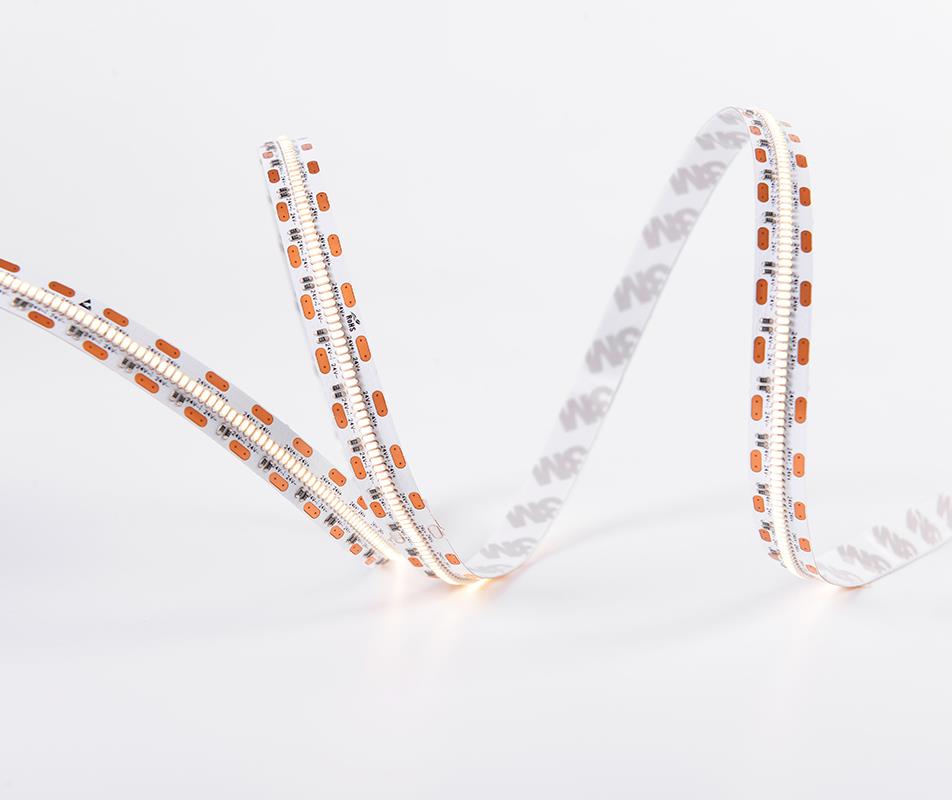

These flexible LED strips contain 700pcs San'an 2216 LEDs per single meter are designed for
long-term professional lighting applications. They are a perfect suit for linear decorative cove
lighting, curved applications, edge lighting or furniture illumination.In this LED strip LEDs are
based on a thick copper Printed circuit board (PCB) . A special thermal conductive adhesive
tape on the back side guarantees perfect heat transfer to the mounting surface. All of these
features give the strip extra long lifetime and stable performance.Atop of the PCB these LED
strips are fitted with the highest quality San'an LEDs, with a wide range of Color rendering
index (CRI) and Color temperature (CCT) to choose from. San'an LEDs guarantees highest
quality lighting and super-high efficacy. This LED strip is available with 3 Step MacAdam or
Single Bin LEDs.

Specification

LED 2110SMD LED (9-10 LM/LED)
LED Quantity 700 LEDs/m
Lumen (LM/M) 1700-1900
Voltage 24V DC
Power Consumption 18.2W/m
PCB Width 10 mm
RA  CRI 90
Color Cold White        /
  Pure White        6500K
  Natural White    4000K
  Warm White     2700K / 3000K
  Red / Green / Blue
Beam Angle 120°
Driver Model Constant Voltage
IP Rate IP20 / IP65 / IP67 / IP68
Working Temperature -25°C ~ +60°C
Store Temperature -25°C ~ +70°C
